15.6” LED Backlight LCD Display
FHD High Resolution
10 Point PCAP Touch
Support IP54 Rating for Flat Screen Front Panel
15.6” LED Backlight LCD Display
FHD High Resolution
10 Point PCAP Touch
Support IP54 Rating for Flat Screen Front Panel
Specification
|
Panel |
ADP A156HAN01.0 |
|
Main Board SOC |
RTD 2556 |
|
Power Consumption |
5V2A |
|
Touch |
PCAP 10point(USB) |
|
Speaker Specification(w/Ω) |
Without |
|

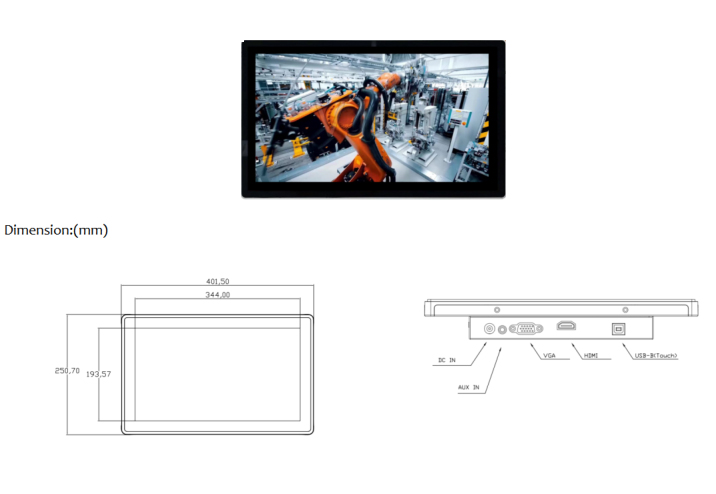

Dimensions（mm,W*H*D） |
401.5*250.7*38mm |
|
VESA Mount Pattern(mm) |
100*100mm/75mm*75mm |
|
Panel Type |
AHVA |
|
Color Gamut |
45%NTSC |
|
Active Area |
344.16*193.59 |
|
Resolution |
1920*1080 |
|
Contrast Ratio |
700:1 |
|
Viewing Angle |
170(H)/170(V) |
|
Panel Brightness(cd/m2) |
220 |
|
Set Brightness(cd/m2) |
200 |
